产品详情| 方头梅开插件 | YouBar@优霸扭力工具 |
|
产品编号 |

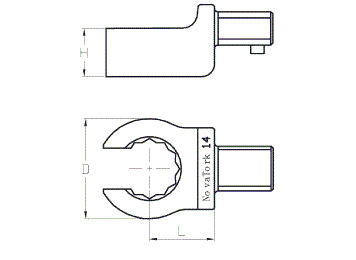

梅花规格 | 接口尺寸 | L(mm) | H(mm) | D(mm) | 重量 | 最大扭矩 |
|---|---|---|---|---|---|---|---|
| ZQOH1413 | 13mm | 14x18 | 25mm | 12mm | 25mm | 135g | 28Nm |
| ZQOH1414 | 14mm | 14x18 | 25mm | 13mm | 27mm | 140g | 31Nm |
| ZQOH1415 | 15mm | 14x18 | 25mm | 13mm | 29mm | 145g | 38Nm |
| ZQOH1416 | 16mm | 14x18 | 25mm | 13mm | 30mm | 145g | 46Nm |
| ZQOH1417 | 17mm | 14x18 | 25mm | 13mm | 31.5mm | 145g | 53Nm |
| ZQOH1418 | 18mm | 14x18 | 25mm | 15mm | 33mm | 150g | 65Nm |
| ZQOH1419 | 19mm | 14x18 | 25mm | 15mm | 34.5mm | 150g | 74Nm |
| ZQOH1420 | 20mm | 14X18 | 25mm | 16mm | 35.5mm | 155g | 86N.m |
| ZQOH1421 | 21mm | 14x18 | 25mm | 16mm | 35.5mm | 155g | 100Nm |
| ZQOH1422 | 22mm | 14x18 | 25mm | 16mm | 37mm | 155g | 115Nm |
| ZQOH1423 | 23mm | 14X18 | 25mm | 16mm | 38.5mm | 155g | 130N.m |
| ZQOH1424 | 24mm | 14x18 | 25mm | 16mm | 40mm | 155g | 145Nm |
| ZQOH1425 | 25mm | 14X18 | 25mm | 16mm | 41mm | 155g | 150N.m |
| ZQOH1426 | 26mm | 14x18 | 30mm | 16mm | 42mm | 160g | 160Nm |
| ZQOH1427 | 27mm | 14x18 | 30*mm | 16mm | 44mm | 155g | 160Nm |
| ZQOH1428 | 28mm | 14X18 | 35mm | 16mm | 48mm | 155g | 170N.m |
| ZQOH1429 | 29mm | 14X18 | 35mm | 16mm | 48mm | 155g | 180N.m |
| ZQOH1430 | 30mm | 14x18 | 35*mm | 16mm | 48mm | 155g | 180Nm |
| ZQOH1431 | 31mm | 14X18 | 35mm | 16mm | 51mm | 155g | 200N.m |
| ZQOH1432 | 32mm | 14x18 | 35*mm | 16mm | 51mm | 155g | 200Nm |
| ZQOH1433 | 33mm | 14X18 | 35mm | 16mm | 51mm | 155g | 200N.m |
| ZQOH1434 | 34mm | 14x18 | 40*mm | 16mm | 55mm | 160g | 260Nm |
| ZQOH1435 | 35mm | 14X18 | 40mm | 16mm | 56mm | 155g | 260N.m |
| ZQOH1436 | 36mm | 14x18 | 40*mm | 16mm | 58mm | 165g | 260Nm |
| ZQOH1438 | 38mm | 14x18 | 45*mm | 16mm | 61mm | 175g | 260Nm |
| ZQOH1441 | 41mm | 14x18 | 50*mm | 16mm | 65mm | 180g | 260Nm |
| ZQOH1444 | 44mm | 14X18 | 50mm | 16mm | 71mm | 190g | 260N.m |
| ZQOH1446 | 46mm | 14x18 | 50*mm | 16mm | 71mm | 190g | 260Nm |
| ZQOH1450 | 50mm | 14x18 | 55*mm | 16mm | 77mm | 195g | 260Nm |
| ZQOH1455 | 55mm | 14x18 | 55mm | 16mm | 84mm | 200g | 260Nm |
| ZQOH1460 | 60mm | 14x18 | 60mm | 16mm | 91mm | 210g | 260Nm |
| ZQOH1465 | 65mm | 14x18 | 65mm | 16mm | 98mm | 220g | 260Nm |
| ZQOH1470 | 70mm | 14x18 | 70mm | 16mm | 105mm | 230g | 260Nm |
| ZQOH1475 | 75mm | 14x18 | 75mm | 16mm | 113mm | 250g | 260Nm |
| ZQOH2419 | 19mm | 24x32 | 35mm | 25mm | 42mm | 627g | 600Nm |
| ZQOH2424 | 24mm | 24X32 | 35mm | 25mm | 60mm | 705g | 600N.m |
| ZQOH2427 | 27mm | 24X32 | 35mm | 25mm | 63mm | 710g | 600N.m |
| ZQOH2430 | 30mm | 24x32 | 35mm | 25mm | 67mm | 755g | 600Nm |
| ZQOH2432 | 32mm | 24x32 | 35mm | 25mm | 69mm | 755g | 600Nm |
| ZQOH2434 | 34mm | 24x32 | 40*mm | 25mm | 71mm | 790g | 600Nm |
| ZQOH2435 | 35mm | 24x32 | 40*mm | 25mm | 73.5mm | 830g | 600Nm |
| ZQOH2436 | 36mm | 24x32 | 40mm | 25mm | 73.5mm | 830g | 600Nm |
| ZQOH2438 | 38mm | 24x32 | 45*mm | 25mm | 80mm | 922g | 600Nm |
| ZQOH2441 | 41mm | 24x32 | 50*mm | 25mm | 83mm | 980g | 600Nm |
| ZQOH2446 | 46mm | 24x32 | 50*mm | 25mm | 92mm | 970g | 600Nm |
| ZQOH2450 | 50mm | 24x32 | 55*mm | 25mm | 98mm | 1180g | 600Nm |
| ZQOH2455 | 55mm | 24x32 | 55*mm | 25mm | 106mm | 1160g | 600Nm |
| ZQOH2460 | 60mm | 24x32 | 60mm | 25mm | 114mm | 1220g | 600Nm |
| ZQOH2465 | 65mm | 24x32 | 65mm | 25mm | 122mm | 1300g | 600Nm |
| ZQOH2470 | 70mm | 24x32 | 70mm | 25mm | 128mm | 1370g | 600Nm |
| ZQOH2475 | 75mm | 24x32 | 75mm | 25mm | 134mm | 1420g | 600Nm |
| ZQOH2480 | 80mm | 24x32 | 80mm | 25mm | 140mm | 1500g | 600Nm |
| ZQOH2490 | 90mm | 24x32 | 90mm | 25mm | 146mm | 1570g | 600Nm |
| ZQOH2495 | 95mm | 24x32 | 95mm | 25mm | 152mm | 1620g | 600Nm |
| ZQOH2730 | 30mm | 27x36 | 50mm | 28mm | 75mm | 1250g | 1200Nm |
| ZQOH2732 | 32mm | 27x36 | 50mm | 28mm | 75mm | 1250g | 1200Nm |
| ZQOH2736 | 36mm | 27x36 | 50mm | 28mm | 80mm | 1350g | 1200Nm |
| ZQOH910 | 10mm | 9x12 | 17.5mm | 12mm | 22mm | 63g | 12Nm |
| ZQOH911 | 11mm | 9x12 | 17.5mm | 12mm | 22mm | 61g | 16Nm |
| ZQOH912 | 12mm | 9x12 | 17.5mm | 12mm | 24mm | 61g | 25Nm |
| ZQOH913 | 13mm | 9x12 | 17.5mm | 12mm | 25mm | 63g | 28Nm |
| ZQOH914 | 14mm | 9x12 | 17.5mm | 13mm | 27mm | 62g | 31Nm |
| ZQOH915 | 15mm | 9x12 | 17.5mm | 13gg | 28gg | 69g | 38Nm |
| ZQOH916 | 16mm | 9x12 | 17.5mm | 13mm | 30mm | 69g | 46Nm |
| ZQOH917 | 17mm | 9x12 | 17.5mm | 13mm | 31.5mm | 68g | 53Nm |
| ZQOH918 | 18mm | 9x12 | 25*mm | 13mm | 33mm | 77g | 65Nm |
| ZQOH919 | 19mm | 9x12 | 25*mm | 13mm | 34.5mm | 82g | 74Nm |
| ZQOH921 | 21mm | 9x12 | 25*mm | 13mm | 35mm | 92g | 95Nm |
| ZQOH922 | 22mm | 9x12 | 25*mm | 13mm | 37mm | 95g | 105Nm |
| ZQOH924 | 24mm | 9x12 | 25*mm | 13mm | 40mm | 97g | 145Nm |
| ZQOH925 | 25mm | 9X12 | 25mm | 13mm | 41mm | 100g | 160N.m |
| ZQOH927 | 27mm | 9x12 | 30*mm | 13mm | 44mm | 105g | 160Nm |
| ZQOH930 | 30mm | 9x12 | 35*mm | 13mm | 48mm | 115g | 160Nm |
| ZQOH932 | 32mm | 9x12 | 35*mm | 13mm | 51mm | 120g | 160Nm |
| ZQOH946 | 46mm | 9X12 | 60mm | 13mm | 71mm | 150g | 160N.m |
| ZQOH950 | 50mm | 9X12 | 55mm | 13mm | 77mm | 165g | 160N.m |
| ZQOH96 | 6mm | 9X12 | 17.5mm | 10mm | 22mm | 60g | 3N.m |
| ZQOH960 | 60mm | 9X12 | 60mm | 13mm | 91mm | 180g | 160N.m |
| ZQOH98 | 8mm | 9X12 | 17.5mm | 12mm | 22mm | 63g | 7N.m |
| ZQOH99 | 9mm | 9X12 | 17.5mm | 12mm | 22mm | 63g | 9N.m |
| ZQOYH1422 | 11/16 " | 14x18 | 25mm | 15mm | 33mm | 150g | 65 |
| ZQOYH1424 | 3/4 " | 14x18 | 25mm | 15mm | 34.5mm | 150g | 74 |
| ZQOYH1426 | 13/16 " | 14x18 | 25mm | 16mm | 35.5mm | 155g | 86 |
| ZQOYH1428 | 7/8 " | 14x18 | 25mm | 16mm | 37mm | 155g | 115 |
| ZQOYH1430 | 15/16 " | 14x18 | 25mm | 16mm | 40mm | 155g | 145 |
| ZQOYH1432 | 1 " | 14x18 | 25mm | 16mm | 41mm | 155g | 150 |
| ZQOYH1434 | 1 1/16 " | 14x18 | 35mm* | 16mm | 44mm | 155g | 160 |
| ZQOYH1436 | 1 1/8 " | 14x18 | 35mm* | 16mm | 48mm | 155g | 170 |
| ZQOYH1438 | 1 3/16 " | 14x18 | 35mm* | 16mm | 48mm | 155g | 180 |
| ZQOYH1440 | 1 1/4 " | 14x18 | 35mm* | 16mm | 51mm | 155g | 200 |
| ZQOYH1442 | 1 5/16 " | 14x18 | 35mm* | 16mm | 51mm | 155g | 200 |
| ZQOYH910 | 5/16 " | 9x12 | 17.5mm | 12mm | 22mm | 63g | 7 |
| ZQOYH912 | 3/8 " | 9x12 | 17.5mm | 12mm | 22mm | 63g | 9 |
| ZQOYH914 | 7/16 " | 9x12 | 17.5mm | 12mm | 22mm | 62g | 16 |
| ZQOYH916 | 1/2 " | 9x12 | 17.5mm | 12mm | 25mm | 63g | 28 |
| ZQOYH918 | 9/16 " | 9x12 | 17.5mm | 13mm | 27mm | 62g | 31 |
| ZQOYH920 | 5/8 " | 9x12 | 17.5mm | 13mm | 30mm | 69g | 46 |
