产品详情| 方头梅花插件 | YouBar@优霸扭力工具 |

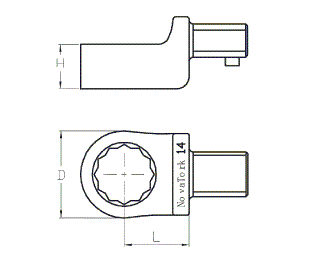

| 产品编号 | 梅花规格 | 接口尺寸 | L(mm) | H(mm) | D(mm) | 重量 | 最大扭矩 |
|---|---|---|---|---|---|---|---|
| ZQH1410 | 10mm | 14x18 | 25mm | 11mm | 16mm | 95g | 58Nm |
| ZQH1411 | 11mm | 14x18 | 25mm | 11mm | 18.5mm | 115g | 75Nm |
| ZQH1412 | 12mm | 14x18 | 25mm | 11mm | 21.5mm | 125g | 89Nm |
| ZQH1413 | 13mm | 14x18 | 25mm | 11mm | 21.5mm | 125g | 105Nm |
| ZQH1414 | 14mm | 14x18 | 25mm | 11mm | 23mm | 124g | 125Nm |
| ZQH1415 | 15mm | 14x18 | 25mm | 11mm | 24mm | 123g | 150Nm |
| ZQH1416 | 16mm | 14x18 | 25mm | 12mm | 26mm | 128g | 175Nm |
| ZQH1417 | 17mm | 14x18 | 25mm | 12mm | 27mm | 127g | 200Nm |
| ZQH1418 | 18mm | 14x18 | 25mm | 12mm | 28.5mm | 133g | 230Nm |
| ZQH1419 | 19mm | 14x18 | 25mm | 12mm | 30.5mm | 138g | 260Nm |
| ZQH1420 | 20mm | 14x18 | 25mm | 15mm | 33mm | 148g | 290Nm |
| ZQH1421 | 21mm | 14x18 | 25mm | 15mm | 33mm | 148g | 330Nm |
| ZQH1422 | 22mm | 14x18 | 25mm | 15mm | 34.5mm | 154g | 360Nm |
| ZQH1424 | 24mm | 14x18 | 25mm | 15mm | 37.5mm | 153g | 360Nm |
| ZQH1425 | 25mm | 14x18 | 25mm | 15mm | 40mm | 160g | 360Nm |
| ZQH1426 | 26mm | 14X18 | 25mm | 16mm | 41.5mm | 160g | 360N.m |
| ZQH1427 | 27mm | 14x18 | 25mm | 16mm | 41.5mm | 160g | 360Nm |
| ZQH1428 | 28mm | 14x18 | 25mm | 16mm | 45mm | 165g | 360Nm |
| ZQH1429 | 29mm | 14X18 | 25mm | 16mm | 45mm | 165g | 360N.m |
| ZQH1430 | 30mm | 14x18 | 25mm | 16mm | 45mm | 165g | 360Nm |
| ZQH1431 | 31mm | 14X18 | 25mm | 16mm | 47.5mm | 168g | 360N.m |
| ZQH1432 | 32mm | 14x18 | 25mm | 16mm | 47.5mm | 168g | 360Nm |
| ZQH1433 | 33mm | 14x18 | 30mm | 16mm | 50mm | 190g | 360Nm |
| ZQH1434 | 34mm | 14x18 | 30*mm | 16mm | 51mm | 190g | 360Nm |
| ZQH1435 | 35mm | 14x18 | 30mm | 16mm | 52mm | 196g | 360Nm |
| ZQH1436 | 35mm | 14x18 | 30*mm | 16mm | 54mm | 196g | 360Nm |
| ZQH1437 | 37mm | 14X18 | 30mm | 16mm | 55mm | 196g | 360N.m |
| ZQH1438 | 38mm | 14x18 | 35*mm | 16mm | 57mm | 210g | 360Nm |
| ZQH1441 | 41mm | 14x18 | 35*mm | 16mm | 61mm | 215g | 360Nm |
| ZQH1442 | 42mm | 14x18 | 35*mm | 16mm | 63mm | 215g | 360Nm |
| ZQH1445 | 45mm | 14X18 | 40mm | 16mm | 67mm | 220g | 360N.m |
| ZQH1446 | 46mm | 14x18 | 40*mm | 16mm | 68mm | 225g | 360Nm |
| ZQH1447 | 47mm | 14X18 | 40mm | 16mm | 68.5mm | 225g | 360N.m |
| ZQH1450 | 50mm | 14x18 | 40*mm | 16mm | 70mm | 230g | 360Nm |
| ZQH1455 | 55mm | 14x18 | 45*mm | 16mm | 76mm | 250g | 360Nm |
| ZQH146 | 6mm | 14X18 | 25mm | 11mm | 13mm | 95g | 18N.m |
| ZQH1460 | 60mm | 14x18 | 45*mm | 16mm | 84mm | 255g | 360Nm |
| ZQH1465 | 65mm | 14x18 | 45mm | 16mm | 84mm | 255g | 360Nm |
| ZQH147 | 7mm | 14X18 | 25mm | 11mm | 14mm | 95g | 34N.m |
| ZQH1470 | 70mm | 14x18 | 50mm | 16mm | 90mm | 265g | 360Nm |
| ZQH1475 | 75mm | 14x18 | 55mm | 16mm | 96mm | 270g | 360Nm |
| ZQH148 | 8mm | 14X18 | 25mm | 11mm | 16mm | 95g | 360N.m |
| ZQH1480 | 80mm | 14X18 | 65mm | 16mm | 108mm | 310g | 360N.m |
| ZQH149 | 9mm | 14X18 | 25mm | 11mm | 16mm | 95g | 45N.m |
| ZQH2424 | 24mm | 24x32 | 35mm | 25mm | 65mm | 880g | 1200Nm |
| ZQH2427 | 27mm | 24x32 | 35mm | 25mm | 68mm | 910g | 1200Nm |
| ZQH2430 | 30mm | 24x32 | 35mm | 25mm | 72mm | 945g | 1200Nm |
| ZQH2432 | 32mm | 24x32 | 35mm | 25mm | 74mm | 961g | 1200Nm |
| ZQH2434 | 34mm | 24x32 | 35mm | 25mm | 76mm | 977g | 1200Nm |
| ZQH2436 | 36mm | 24x32 | 40*mm | 25mm | 80mm | 1075g | 1200Nm |
| ZQH2438 | 38mm | 24x32 | 40*mm | 25mm | 80mm | 1053g | 1200Nm |
| ZQH2441 | 41mm | 24x32 | 45*mm | 25mm | 80mm | 1059g | 1200Nm |
| ZQH2446 | 46mm | 24x32 | 45*mm | 25mm | 84mm | 1074g | 1200Nm |
| ZQH2450 | 50mm | 24x32 | 50*mm | 25mm | 98mm | 1315g | 1200Nm |
| ZQH2455 | 55mm | 24x32 | 55*mm | 25mm | 105mm | 1533g | 1200Nm |
| ZQH2460 | 60mm | 24x32 | 60*mm | 25mm | 110mm | 1642g | 1200Nm |
| ZQH2465 | 65mm | 24x32 | 65*mm | 25mm | 128mm | 1900g | 1200Nm |
| ZQH2470 | 70mm | 24x32 | 65*mm | 25mm | 128mm | 1915g | 1200Nm |
| ZQH2475 | 75mm | 24X32 | 75mm | 28mm | 138mm | 2600g | 1200N.m |
| ZQH2727 | 27mm | 27X36 | 50mm | 28mm | 68mm | 1190g | 1200N.m |
| ZQH2730 | 30mm | 27x36 | 50mm | 28mm | 70mm | 1190g | 3000Nm |
| ZQH2731 | 31mm | 27X36 | 50mm | 28mm | 70mm | 1213g | 3000N.m |
| ZQH2732 | 32mm | 27x36 | 50mm | 28mm | 70mm | 1213g | 3000Nm |
| ZQH2734 | 34mm | 27x36 | 50mm | 28mm | 75mm | 1235g | 3000Nm |
| ZQH2736 | 36mm | 27x36 | 50mm | 28mm | 75mm | 1225g | 3000Nm |
| ZQH2738 | 38mm | 27x36 | 50mm | 28mm | 80mm | 1263g | 3000Nm |
| ZQH2741 | 41mm | 27x36 | 50mm | 28mm | 80mm | 1265g | 3000Nm |
| ZQH2746 | 46mm | 27x36 | 50mm | 28mm | 86mm | 1270g | 3000Nm |
| ZQH2750 | 50mm | 27x36 | 50mm | 28mm | 98mm | 1603g | 3000Nm |
| ZQH2755 | 55mm | 27x36 | 55*mm | 28mm | 105mm | 1771g | 3000Nm |
| ZQH2760 | 60mm | 27x36 | 60*mm | 28mm | 110mm | 1874g | 3000Nm |
| ZQH2765 | 65mm | 27x36 | 60*mm | 28mm | 118mm | 2050g | 3000Nm |
| ZQH2770 | 70mm | 27x36 | 65*mm | 28mm | 128mm | 2322g | 3000Nm |
| ZQH2775 | 75mm | 27x36 | 75mm | 28mm | 138mm | 2600g | 3000Nm |
| ZQH2780 | 80mm | 27x36 | 80mm | 28mm | 148mm | 2900g | 3000Nm |
| ZQH910 | 10mm | 9x12 | 17.5mm | 9mm | 17mm | 48g | 58Nm |
| ZQH911 | 11mm | 9x12 | 17.5mm | 9mm | 18.5mm | 47g | 72Nm |
| ZQH912 | 12mm | 9x12 | 17.5mm | 12mm | 20mm | 54g | 89Nm |
| ZQH913 | 13mm | 9x12 | 17.5mm | 12mm | 22mm | 53g | 105Nm |
| ZQH914 | 14mm | 9x12 | 17.5mm | 12mm | 23mm | 52g | 125Nm |
| ZQH915 | 15mm | 9x12 | 17.5mm | 12mm | 24mm | 54g | 145Nm |
| ZQH916 | 16mm | 9x12 | 17.5mm | 13mm | 26mm | 56g | 160Nm |
| ZQH917 | 17mm | 9x12 | 17.5mm | 13mm | 27mm | 55g | 160Nm |
| ZQH918 | 18mm | 9x12 | 17.5mm | 13mm | 28.5mm | 58g | 160Nm |
| ZQH919 | 19mm | 9x12 | 17.5mm | 13mm | 30mm | 57g | 160Nm |
| ZQH920 | 20mm | 9x12 | 17.5mm | 13mm | 33mm | 68g | 160Nm |
| ZQH921 | 21mm | 9x12 | 17.5mm | 13mm | 33mm | 68g | 160Nm |
| ZQH922 | 22mm | 9x12 | 17.5mm | 13mm | 34.5mm | 73g | 160Nm |
| ZQH923 | 23mm | 9X12 | 17.5mm | 13mm | 36.5mm | 75g | 160N.m |
| ZQH924 | 24mm | 9x12 | 25*mm | 13mm | 37.5mm | 80g | 160Nm |
| ZQH925 | 25mm | 9x12 | 25mm | 13mm | 40mm | 80g | 160Nm |
| ZQH927 | 27mm | 9x12 | 25*mm | 13mm | 41.5mm | 80g | 160Nm |
| ZQH930 | 30mm | 9x12 | 25*mm | 13mm | 45mm | 85g | 160Nm |
| ZQH932 | 32mm | 9X12 | 25mm | 13mm | 47.5mm | 85g | 160N.m |
| ZQH936 | 36mm | 9x12 | 30*mm | 13mm | 52mm | 90g | 160Nm |
| ZQH94 | 4mm | 9X12 | 17.5mm | 6mm | 9.6mm | 40g | 7N.m |
| ZQH941 | 41mm | 9x12 | 35*mm | 13mm | 61mm | 90g | 160Nm |
| ZQH95 | 5mm | 9X12 | 17.5mm | 6mm | 10.8mm | 40g | 12N.m |
| ZQH96 | 6mm | 9x12 | 17.5mm | 8mm | 12mm | 43g | 18Nm |
| ZQH97 | 7mm | 9x12 | 17.5mm | 8mm | 13mm | 43g | 25Nm |
| ZQH98 | 8mm | 9x12 | 17.5mm | 8mm | 14mm | 42g | 34Nm |
| ZQH99 | 9mm | 9x12 | 17.5mm | 9mm | 16mm | 45g | 45Nm |
| ZQYH1416 | 1/2 " | 14x18 | 25mm | 11mm | 21.5mm | 125g | 105Nm |
| ZQYH1418 | 9/16 " | 14x18 | 25mm | 11mm | 24mm | 123g | 150Nm |
| ZQYH1420 | 5/8 " | 14x18 | 25mm | 12mm | 26mm | 128g | 175Nm |
| ZQYH1422 | 11/16 " | 14x18 | 25mm | 12mm | 28.5mm | 133g | 230Nm |
| ZQYH1424 | 3/4 " | 14x18 | 25mm | 12mm | 30.5mm | 138g | 260Nm |
| ZQYH1426 | 13/16 " | 14x18 | 25mm | 15mm | 33mm | 148g | 330Nm |
| ZQYH1428 | 7/8 " | 14x18 | 25mm | 15mm | 34.5mm | 154g | 360Nm |
| ZQYH1430 | 15/16 " | 14x18 | 25mm | 15mm | 37.5mm | 153g | 360Nm |
| ZQYH1432 | 1 " | 14x18 | 25mm | 15mm | 40mm | 160g | 360Nm |
| ZQYH1434 | 1 1/16 " | 14x18 | 25mm | 16mm | 41.5mm | 160g | 360Nm |
| ZQYH1436 | 1 1/8 " | 14x18 | 25mm | 16mm | 45mm | 165g | 360Nm |
| ZQYH1440 | 1 1/4 " | 14x18 | 25mm | 16mm | 47.5mm | 168g | 360Nm |
| ZQYH1446 | 1 7/16 " | 14x18 | 30mm | 16mm | 54mm | 196g | 360Nm |
| ZQYH1464 | 2 " | 14x18 | 40mm | 16mm | 70mm | 230g | 360Nm |
| ZQYH2430 | 15/16 " | 24x32 | 35mm | 25mm | 65mm | 880g | 1200Nm |
| ZQYH2436 | 1 1/8 " | 24x32 | 35mm | 25mm | 72mm | 945g | 1200Nm |
| ZQYH910 | 5/16 " | 9x12 | 17.5mm | 8mm | 13mm | 43g | 34Nm |
| ZQYH912 | 3/8 " | 9x12 | 17.5mm | 8mm | 14mm | 42g | 58Nm |
| ZQYH914 | 7/16 " | 9x12 | 17.5mm | 9mm | 17mm | 48g | 72Nm |
| ZQYH916 | 1/2 " | 9x12 | 17.5mm | 9mm | 18.5mm | 47g | 105Nm |
| ZQYH918 | 9/16 " | 9x12 | 17.5mm | 12mm | 22mm | 53g | 125Nm |
| ZQYH920 | 5/8 " | 9x12 | 17.5mm | 12mm | 23mm | 52g | 160Nm |
| ZQYH922 | 11/16 " | 9x12 | 17.5mm | 13mm | 26mm | 56g | 160Nm |
| ZQYH924 | 3/4 " | 9x12 | 17.5mm | 13mm | 28.5mm | 58g | 160Nm |
| ZQYH926 | 13/16 " | 9x12 | 17.5mm | 13mm | 30mm | 57g | 160Nm |
| ZQYH928 | 7/8 " | 9x12 | 17.5mm | 13mm | 33mm | 68g | 160Nm |
| ZQYH98 | 1/4 " | 9x12 | 17.5mm | 13mm | 34.5mm | 73g | 25Nm |
