产品详情

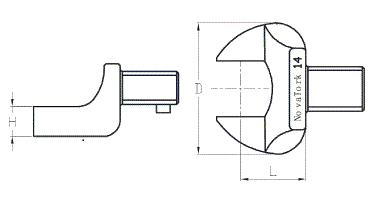

| 方头开口插件 |
YouBar@优霸扭力工具 |
| 产品编号 | 开口大小 | 接口尺寸 | L(mm) | H(mm) | D(mm) | 重量 | 最大扭矩 |
|---|---|---|---|---|---|---|---|
| ZOH1410 | 10mm | 14x18 | 25mm | 7mm | 32mm | 116g | 24Nm |
| ZOH1411 | 11mm | 14x18 | 25mm | 7mm | 32mm | 114g | 32Nm |
| ZOH1412 | 12mm | 14x18 | 25mm | 7mm | 32mm | 112g | 41Nm |
| ZOH1413 | 13mm | 14x18 | 25mm | 7mm | 32mm | 110g | 51Nm |
| ZOH1414 | 14mm | 14x18 | 25mm | 8mm | 35mm | 116g | 63Nm |
| ZOH1415 | 15mm | 14x18 | 25mm | 8mm | 35mm | 115g | 77Nm |
| ZOH1416 | 16mm | 14x18 | 25mm | 9mm | 38mm | 128g | 92Nm |
| ZOH1417 | 17mm | 14x18 | 25mm | 9mm | 38mm | 127g | 109Nm |
| ZOH1418 | 18mm | 14x18 | 25mm | 10mm | 42mm | 138g | 125Nm |
| ZOH1419 | 19mm | 14x18 | 25mm | 10mm | 42mm | 137g | 145Nm |
| ZOH1420 | 20mm | 14x18 | 25mm | 11mm | 50mm | 145g | 160Nm |
| ZOH1421 | 21mm | 14x18 | 25mm | 11mm | 50mm | 158g | 190Nm |
| ZOH1422 | 22mm | 14x18 | 25mm | 11mm | 50mm | 155g | 220Nm |
| ZOH1423 | 23mm | 14x18 | 25mm | 13mm | 53mm | 156g | 250Nm |
| ZOH1424 | 24mm | 14x18 | 25mm | 13mm | 53mm | 159g | 280Nm |
| ZOH1425 | 25mm | 14x18 | 25mm | 13mm | 53mm | 163g | 320Nm |
| ZOH1426 | 26mm | 14x18 | 25mm | 13mm | 53mm | 163g | 360Nm |
| ZOH1427 | 27mm | 14x18 | 30*mm | 13mm | 64mm | 230g | 360Nm |
| ZOH1428 | 28mm | 14x18 | 30*mm | 13mm | 66mm | 255g | 360Nm |
| ZOH1429 | 29mm | 14x18 | 30*mm | 13mm | 68mm | 255g | 360Nm |
| ZOH1430 | 30mm | 14x18 | 35*mm | 13mm | 70mm | 255g | 360Nm |
| ZOH1431 | 31mm | 14x18 | 35mm | 13mm | 70mm | 255g | 360Nm |
| ZOH1432 | 32mm | 14x18 | 35*mm | 13mm | 70mm | 255g | 360Nm |
| ZOH1433 | 33mm | 14x18 | 40*mm | 13mm | 75mm | 360g | 360Nm |
| ZOH1434 | 34mm | 14x18 | 40*mm | 13mm | 78mm | 360g | 360Nm |
| ZOH1435 | 35mm | 14x18 | 40*mm | 13mm | 80mm | 365g | 360Nm |
| ZOH1436 | 36mm | 14x18 | 40*mm | 13mm | 80mm | 365g | 360Nm |
| ZOH1437 | 37mm | 14x18 | 45*mm | 13mm | 83mm | 440g | 360Nm |
| ZOH1438 | 38mm | 14x18 | 45*mm | 13mm | 85mm | 440g | 360Nm |
| ZOH1439 | 39mm | 14x18 | 45*mm | 13mm | 85mm | 435g | 360Nm |
| ZOH1440 | 40mm | 14x18 | 50*mm | 13mm | 90mm | 430g | 360Nm |
| ZOH1441 | 41mm | 14x18 | 50*mm | 13mm | 90mm | 430g | 360Nm |
| ZOH1442 | 42mm | 14x18 | 50*mm | 13mm | 93mm | 430g | 360Nm |
| ZOH1443 | 43mm | 14X18 | 50mm | 13mm | 95mm | 480g | 360N.m |
| ZOH1444 | 44mm | 14x18 | 50*mm | 13mm | 98mm | 550g | 360Nm |
| ZOH1445 | 45mm | 14x18 | 50*mm | 13mm | 100mm | 600g | 360Nm |
| ZOH1446 | 46mm | 14x18 | 50*mm | 13mm | 100mm | 595g | 360Nm |
| ZOH1447 | 47mm | 14x18 | 50mm | 13mm | 102mm | 595g | 360Nm |
| ZOH1448 | 48mm | 14X18 | 50mm | 13mm | 104mm | 595g | 360N.m |
| ZOH1449 | 49mm | 14x18 | 50*mm | 13mm | 106mm | 610g | 360Nm |
| ZOH1450 | 50mm | 14x18 | 55*mm | 13mm | 106mm | 610g | 360Nm |
| ZOH1451 | 51mm | 14x18 | 55*mm | 13mm | 106mm | 600g | 360Nm |
| ZOH1452 | 52mm | 14x18 | 55*mm | 13mm | 110mm | 600g | 360Nm |
| ZOH1453 | 53mm | 14X18 | 55mm | 13mm | 112mm | 600g | 360N.m |
| ZOH1455 | 55mm | 14x18 | 55*mm | 13mm | 116mm | 585g | 360Nm |
| ZOH1456 | 56mm | 14X18 | 60mm | 13mm | 120mm | 650g | 360N.m |
| ZOH1457 | 57mm | 14x18 | 60*mm | 13mm | 121mm | 650g | 360Nm |
| ZOH146 | 6mm | 14X18 | 25mm | 7mm | 32mm | 120g | 6N.m |
| ZOH1460 | 60mm | 14x18 | 60*mm | 13mm | 121mm | 650g | 360Nm |
| ZOH1461 | 61mm | 14x18 | 60*mm | 13mm | 121mm | 640g | 360Nm |
| ZOH1462 | 62mm | 14x18 | 60mm | 13mm | 122mm | 640g | 360Nm |
| ZOH1465 | 65mm | 14x18 | 65*mm | 13mm | 126mm | 680g | 360Nm |
| ZOH1466 | 66mm | 14x18 | 65mm | 13mm | 128mm | 680g | 360Nm |
| ZOH1468 | 68mm | 14x18 | 70*mm | 13mm | 130mm | 690g | 360Nm |
| ZOH147 | 7mm | 14X18 | 25mm | 7mm | 32mm | 120g | 9N.m |
| ZOH1470 | 70mm | 14x18 | 70*mm | 13mm | 135mm | 700g | 360Nm |
| ZOH1472 | 72mm | 14x18 | 70*mm | 13mm | 135mm | 690g | 360Nm |
| ZOH1475 | 75mm | 14x18 | 75*mm | 13mm | 142mm | 720g | 360Nm |
| ZOH1478 | 78mm | 14X18 | 75mm | 13mm | 150mm | 730g | 360N.m |
| ZOH148 | 8mm | 14x18 | 25mm | 7mm | 32mm | 120g | 13Nm |
| ZOH1480 | 80mm | 14x18 | 80*mm | 13mm | 155mm | 750g | 360Nm |
| ZOH149 | 9mm | 14x18 | 25mm | 7mm | 32mm | 118g | 18Nm |
| ZOH1490 | 90mm | 14x18 | 90*mm | 13mm | 165mm | 800g | 360Nm |
| ZOH2417 | 17mm | 24x32 | 17mm | 25mm | 62mm | 650kg | 1200Nm |
| ZOH2419 | 19mm | 24x32 | 35mm | 25mm | 65mm | 680g | 1200Nm |
| ZOH2420 | 20mm | 24x32 | 35mm | 25mm | 66mm | 680g | 1200Nm |
| ZOH2422 | 22mm | 24x32 | 35mm | 25mm | 68mm | 700g | 1200Nm |
| ZOH2424 | 24mm | 24x32 | 35mm | 25mm | 70mm | 715g | 1200Nm |
| ZOH2425 | 25mm | 24X32 | 35mm | 25mm | 70mm | 715g | 1200N.m |
| ZOH2427 | 27mm | 24x32 | 35mm | 25mm | 72mm | 718g | 1200Nm |
| ZOH2428 | 28mm | 24x32 | 35mm | 25mm | 72mm | 719g | 1200Nm |
| ZOH2430 | 30mm | 24x32 | 35mm | 25mm | 75mm | 720g | 1200Nm |
| ZOH2432 | 32mm | 24x32 | 35mm | 25mm | 76mm | 725g | 1200Nm |
| ZOH2434 | 34mm | 24x32 | 40*mm | 25mm | 78mm | 730g | 1200Nm |
| ZOH2436 | 36mm | 24x32 | 40*mm | 25mm | 80mm | 735g | 1200Nm |
| ZOH2438 | 38mm | 24x32 | 45*mm | 25mm | 91mm | 809g | 1200Nm |
| ZOH2441 | 41mm | 24x32 | 50*mm | 25mm | 95mm | 925g | 1200Nm |
| ZOH2445 | 45mm | 24x32 | 50*mm | 25mm | 100mm | 1000g | 1200Nm |
| ZOH2446 | 46mm | 24x32 | 50*mm | 25mm | 100mm | 1000g | 1200Nm |
| ZOH2448 | 48mm | 24X32 | 50mm | 25mm | 104mm | 1100g | 1200N.m |
| ZOH2450 | 50mm | 24x32 | 55*mm | 25mm | 106mm | 1150g | 1200Nm |
| ZOH2455 | 55mm | 24x32 | 55*mm | 25mm | 119mm | 1300g | 1200Nm |
| ZOH2460 | 60mm | 24x32 | 60*mm | 25mm | 121mm | 1330g | 1200Nm |
| ZOH2465 | 65mm | 24x32 | 65*mm | 25mm | 130mm | 1337g | 1200Nm |
| ZOH2467 | 67mm | 24x32 | 70*mm | 25mm | 130mm | 1415g | 1200Nm |
| ZOH2470 | 70mm | 24x32 | 70*mm | 25mm | 132mm | 1620g | 1200Nm |
| ZOH2480 | 80mm | 24X32 | 80mm | 28mm | 158mm | 2600g | 1200N.m |
| ZOH2485 | 85mm | 24X32 | 1200N.m | ||||
| ZOH2727 | 27mm | 27x36 | 50mm | 28mm | 90mm | 1250g | 3000Nm |
| ZOH2730 | 30mm | 27x36 | 50mm | 28mm | 95mm | 1295g | 3000Nm |
| ZOH2732 | 32mm | 27x36 | 50mm | 28mm | 95mm | 1295g | 3000Nm |
| ZOH2734 | 34mm | 27x36 | 50mm | 28mm | 100mm | 1330g | 3000Nm |
| ZOH2736 | 36mm | 27x36 | 50mm | 28mm | 100mm | 1335g | 3000Nm |
| ZOH2738 | 38mm | 27x36 | 50mm | 28mm | 107mm | 1338g | 3000Nm |
| ZOH2741 | 41mm | 27x36 | 50mm | 28mm | 107mm | 1440g | 3000Nm |
| ZOH2746 | 46mm | 27x36 | 50mm | 28mm | 114mm | 1445g | 3000Nm |
| ZOH2750 | 50mm | 27x36 | 55*mm | 28mm | 118mm | 1450g | 3000Nm |
| ZOH2755 | 55mm | 27x36 | 55*mm | 28mm | 124mm | 1455g | 3000Nm |
| ZOH2760 | 60mm | 27x36 | 60*mm | 28mm | 130mm | 1460g | 3000Nm |
| ZOH2761 | 61mm | 27x36 | 65*mm | 28mm | 131mm | 1462g | 3000Nm |
| ZOH2765 | 65mm | 27x36 | 65*mm | 28mm | 136mm | 1462g | 3000Nm |
| ZOH2770 | 70mm | 27x36 | 70*mm | 28mm | 142mm | 1465g | 3000Nm |
| ZOH2775 | 75mm | 27x36 | 75*mm | 28mm | 148mm | 1780g | 3000Nm |
| ZOH2780 | 80mm | 27x36 | 80*mm | 28mm | 158mm | 2600g | 3000Nm |
| ZOH2785 | 85mm | 27X36 | 85mm | 28mm | 164mm | 2850g | 3000N.m |
| ZOH2790 | 90mm | 27x36 | 90*mm | 28mm | 176mm | 2900g | 3000Nm |
| ZOH2795 | 95mm | 27x36 | 95*mm | 28mm | 180mm | 3000g | 3000Nm |
| ZOH910 | 10mm | 9x12 | 17.5mm | 5.5mm | 26mm | 43g | 24Nm |
| ZOH911 | 11mm | 9x12 | 17.5mm | 5.5mm | 26mm | 42g | 32Nm |
| ZOH912 | 12mm | 9x12 | 17.5mm | 7mm | 30mm | 48g | 41Nm |
| ZOH913 | 13mm | 9x12 | 17.5mm | 7mm | 30mm | 47g | 51Nm |
| ZOH914 | 14mm | 9x12 | 17.5mm | 8mm | 35mm | 58g | 63Nm |
| ZOH915 | 15mm | 9x12 | 17.5mm | 8mm | 35mm | 57g | 77Nm |
| ZOH916 | 16mm | 9x12 | 17.5mm | 8mm | 38mm | 56g | 92Nm |
| ZOH917 | 17mm | 9x12 | 17.5mm | 8mm | 38mm | 54g | 109Nm |
| ZOH918 | 18mm | 9x12 | 25*mm | 8mm | 42mm | 80g | 125Nm |
| ZOH919 | 19mm | 9x12 | 25*mm | 8mm | 42mm | 75g | 145Nm |
| ZOH920 | 20mm | 9x12 | 25*mm | 8mm | 48mm | 90g | 160Nm |
| ZOH921 | 21mm | 9x12 | 25*mm | 8mm | 50mm | 100g | 160Nm |
| ZOH922 | 22mm | 9x12 | 25*mm | 8mm | 50mm | 95g | 160Nm |
| ZOH923 | 23mm | 9x12 | 25*mm | 8mm | 53mm | 100g | 160Nm |
| ZOH924 | 24mm | 9x12 | 25*mm | 8mm | 53mm | 110g | 160Nm |
| ZOH925 | 25mm | 9x12 | 25*mm | 8mm | 53mm | 110g | 160Nm |
| ZOH926 | 26mm | 9x12 | 25*mm | 8mm | 53mm | 110g | 160Nm |
| ZOH927 | 27mm | 9x12 | 30*mm | 8mm | 64mm | 140g | 160Nm |
| ZOH928 | 28mm | 9x12 | 30*mm | 8mm | 68mm | 142g | 160Nm |
| ZOH929 | 29mm | 9X12 | 30mm | 8mm | 68mm | 142g | 160N.m |
| ZOH930 | 30mm | 9x12 | 35*mm | 8mm | 70mm | 145g | 160Nm |
| ZOH932 | 32mm | 9x12 | 35*mm | 8mm | 70mm | 145g | 160Nm |
| ZOH933 | 33mm | 9X12 | 35mm | 8mm | 75mm | 145g | 160N.m |
| ZOH934 | 34mm | 9x12 | 35*mm | 8mm | 80mm | 145g | 160Nm |
| ZOH935 | 35mm | 9x12 | 35*mm | 8mm | 80mm | 145g | 160Nm |
| ZOH936 | 36mm | 9x12 | 40*mm | 8mm | 80mm | 145g | 160Nm |
| ZOH937 | 37mm | 9x12 | 45*mm | 8mm | 81mm | 145g | 160Nm |
| ZOH938 | 38mm | 9x12 | 45mm | 8mm | 82mm | 145g | 160Nm |
| ZOH939 | 39mm | 9x12 | 45mm | 8mm | 83mm | 145g | 160Nm |
| ZOH94 | 4mm | 9X12 | 17.5mm | 4mm | 22mm | 35g | 2N.m |
| ZOH941 | 41mm | 9x12 | 45*mm | 8mm | 85mm | 145g | 160Nm |
| ZOH942 | 42mm | 9x12 | 50*mm | 8mm | 90mm | 160g | 160Nm |
| ZOH945 | 45mm | 9x12 | 50*mm | 8mm | 100mm | 165g | 160Nm |
| ZOH946 | 46mm | 9x12 | 50*mm | 8mm | 100mm | 165g | 160Nm |
| ZOH949 | 49mm | 9x12 | 50*mm | 8mm | 106mm | 175g | 160Nm |
| ZOH95 | 5mm | 9X12 | 17.5mm | 4mm | 22mm | 35g | 4N.m |
| ZOH95.5 | 5.5mm | 9X12 | 17.5mm | 5mm | 22mm | 38g | 5N.m |
| ZOH950 | 50mm | 9x12 | 55*mm | 8mm | 106mm | 175g | 160Nm |
| ZOH951 | 51mm | 9X12 | 55mm | 8mm | 106mm | 175g | 160N.m |
| ZOH952 | 52mm | 9x12 | 55*mm | 8mm | 110mm | 175g | 160Nm |
| ZOH953 | 53mm | 9X12 | 55mm | 8mm | 112mm | 175g | 160N.m |
| ZOH955 | 55mm | 9x12 | 55*mm | 8mm | 116mm | 175g | 160Nm |
| ZOH96 | 6mm | 9x12 | 17.5mm | 5mm | 22mm | 38g | 6Nm |
| ZOH960 | 60mm | 9x12 | 60*mm | 8mm | 121mm | 215g | 160Nm |
| ZOH965 | 65mm | 9x12 | 65*mm | 8mm | 126mm | 225g | 160Nm |
| ZOH967 | 67mm | 9x12 | 65*mm | 8mm | 128mm | 225g | 160Nm |
| ZOH97 | 7mm | 9x12 | 17.5mm | 5mm | 22mm | 38g | 9Nm |
| ZOH98 | 8mm | 9x12 | 17.5mm | 5mm | 22mm | 37g | 13Nm |
| ZOH99 | 9mm | 9x12 | 17.5mm | 5.5mm | 26mm | 44g | 18Nm |
