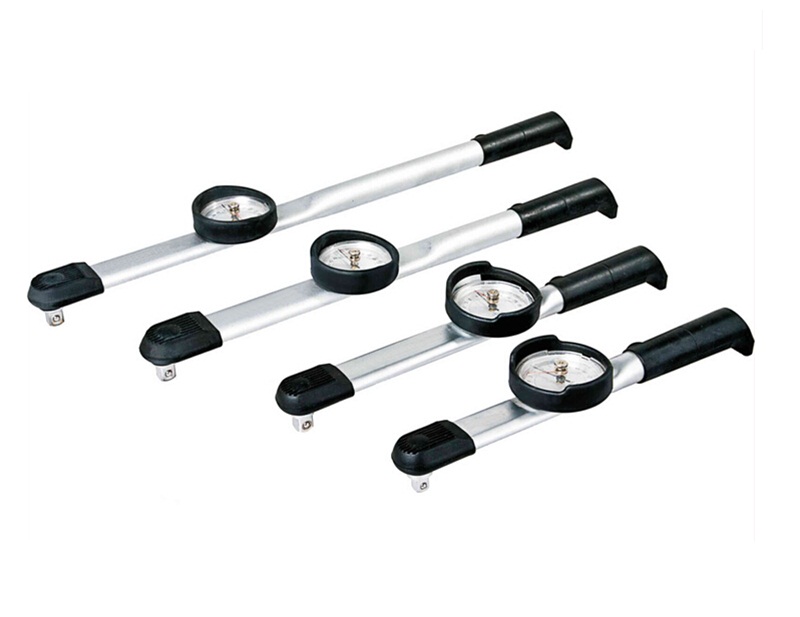

| 表盘式扭力扳手 | YouBar@优霸扭力工具 |
产品特点：
指针表盘扭矩扳手读数直观，操作简便
带记忆针有最大值保持功能。
规格参数：
|
产品编号 |
方头尺寸 |
扭 矩 范 围 |
长度 |
头部宽度 |
重量 |
|
|
ZNB-2 |
1/4" |
0-2Nm |
0-18Lb.in |
310mm |
37mm |
0.57kg |
|
ZNB-3 |
1/4" |
0-5Nm |
0-45Lb.in |
310mm |
37mm |
0.57kg |
|
ZNB-6 |
1/4" |
0-6Nm |
0-50Lb.in |
310mm |
37mm |
0.57kg |
|
ZNB-8 |
1/4" |
0-8Nm |
0-70Lb.in |
310mm |
37mm |
0.57kg |
|
ZNB-10 |
3/8" |
0-10Nm |
0-85Lb.in |
310mm |
37mm |
0.57kg |
|
ZNB-17.5 |
3/8" |
0-17.5Nm |
0-150Lb.in |
310mm |
37mm |
0.57kg |
|
ZNB-20 |
3/8" |
0-20Nm |
0-175Lb.in |
310mm |
37mm |
0.57kg |
|
ZNB-25 |
3/8" |
0-25Nm |
0-225Lb.in |
310mm |
37mm |
0.57kg |
|
ZNB-30 |
3/8" |
0-30Nm |
0-250Lb.in |
310mm |
37mm |
0.57kg |
|
ZNB-35 |
3/8" |
0-35Nm |
0-300Lb.in |
400mm |
37mm |
0.76kg |
|
ZNB-40 |
3/8" |
0-40Nm |
0-350Lb.in |
400mm |
37mm |
0.76kg |
|
ZNB-50 |
3/8" |
0-50Nm |
0-35Lb.ft |
400mm |
37mm |
0.76kg |
|
ZNB-20 |
3/8" |
0-60Nm |
0-45Lb.ft |
400mm |
37mm |
0.76kg |
|
ZNB-100 |
1/2" |
0-100Nm |
0-70Lb.ft |
480mm |
37mm |
0.91kg |
|
ZNB-120 |
1/2" |
0-120Nm |
0-90Lb.ft |
480mm |
37mm |
0.91kg |
|
ZNB-140 |
1/2" |
0-140Nm |
0-100Lb.ft |
480mm |
37mm |
0.91kg |
|
ZNB-200 |
1/2" |
0-200Nm |
0-150Lb.ft |
550mm |
37mm |
1.05kg |
|
ZNB-250 |
1/2" |
0-250Nm |
0-175Lb.ft |
550mm |
37mm |
1.05kg |
|
ZNB-300 |
1/2" |
0-300Nm |
0-250Lb.ft |
550mm |
37mm |
1.05kg |
|
ZNB-350 |
1/2" |
0-350Nm |
0-250Lb.ft |
550mm |
37mm |
1.05kg |
