产品详情-

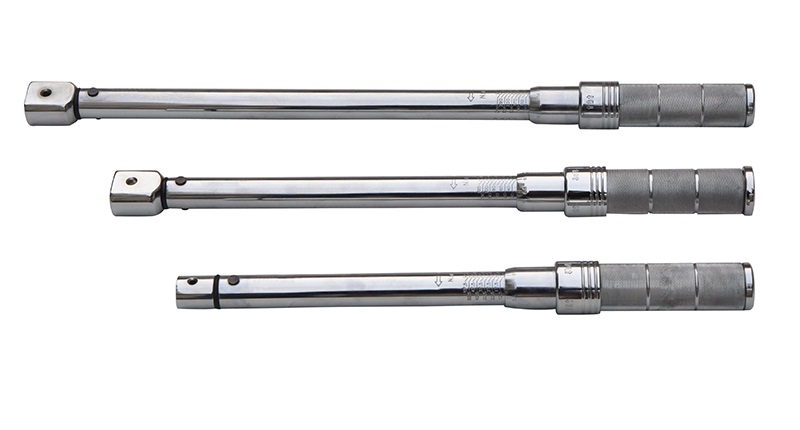

优霸可换头扭力扳手--金属手柄系列
产品特点：
在全金属扭矩扳手的基础上，头部为可换头
头部形式有：凹方孔：9X12mm；14X18mm；24X32mm；27X36mm
圆柱头：Φ16mm；Φ22mm
精度:读值的±3%(500Nm以上的精度为读值的±4%)优于扭矩扳手的国际标准
每把扭矩扳手有唯一的识别码便于追溯
合金钢上的永久性扭矩刻度，使用者方便读取，公英制对照
手柄尾端有锁紧装置，拉下调整扭矩，推上锁定扭矩值
|
产品编号 |
扳手头尺寸 |
扭 矩 范 围 |
长度 |
头部宽度 |
重量 |
|
|
JH14150 |
14X18 |
30-150Lb.ft |
40-200Nm |
500mm |
38mm |
1.06kg |
|
JH14250 |
14X18 |
50-250Lb.ft |
70-340Nm |
520mm |
38mm |
1.20kg |
|
JH14250L |
14X18 |
50-250Lb.ft |
70-340Nm |
700mm |
38mm |
2.00kg |
|
JH24400 |
24x32 |
80-400Lb.ft |
100-550Nm |
855mm |
56mm |
5.00kg |
|
JH24600 |
24x32 |
100-600Lb.ft |
150-800Nm |
1055mm |
56mm |
5.90kg |
|
JH271000 |
27x36 |
200-1000Lb.ft |
250-1350Nm |
1260mm |
64mm |
9.00kg |
|
JH272000 |
9X12 |
400-2000Lb.ft |
500-2700Nm |
1260mm |
64mm |
10.3kg |
|
JH9100 |
9X12 |
20-100Lb.ft |
25-135Nm |
410mm |
38mm |
0.94kg |
|
JH9200 |
9X12 |
40-200Lb.in |
4.0-22Nm |
265mm |
38mm |
0.58kg |
|
JH9250 |
9X12 |
50-250Lb.in |
6.0-30Nm |
300mm |
38mm |
0.72kg |
|
JMH14200 |
14x18 |
40-200Nm |
30-150Lb.ft |
460mm |
38mm |
1.06kg |
|
JMH14335 |
14x18 |
65-335Nm |
50-250Lb.ft |
520mm |
38mm |
1.20kg |
|
JMH14335L |
14x18 |
65-335Nm |
50-250Lb.ft |
700mm |
38mm |
2.00kg |
|
JMH14400 |
14x18 |
80-400N.m |
60-300Lb.ft |
700mm |
38mm |
2kg |
|
JMH241000 |
24x32 |
200-1000Nm |
150-750Lb.ft |
1055mm |
56mm |
5.90kg |
|
JMH24500 |
24x32 |
100-500Nm |
80-400Lb.ft |
855mm |
56mm |
5.00kg |
|
JMH24800 |
24x32 |
160-800Nm |
120-600Lb.ft |
1055mm |
56mm |
5.90kg |
|
JMH271500 |
27x36 |
300-1500Nm |
200-1100Lb.ft |
1260mm |
64mm |
9.00kg |
|
JMH271500E |
27x36 |
300-1500Nm |
200-1100Lb.ft |
2200mm |
64mm |
11.3kg |
|
JMH272000 |
27x36 |
400-2000Nm |
300-1500Lb.ft |
1260mm |
64mm |
9.00kg |
|
JMH272000E |
27x36 |
400-2000Nm |
300-1500Lb.ft |
2200mm |
64mm |
11.3kg |
|
JMH273000 |
27x36 |
600-3000Nm |
400-2000Lb.ft |
1260mm |
64mm |
10.3kg |
|
JMH273000E |
27x36 |
600-3000Nm |
400-2000Lb.ft |
2780mm |
64mm |
15.3kg |
|
JMH9100 |
9x12 |
20-100N.m |
15-75Lb.ft |
427mm |
38mm |
0.94kg |
|
JMH912 |
9x12 |
2.5-12Nm |
20-105Lb.in |
284mm |
38mm |
0.58kg |
|
JMH9125 |
9x12 |
25-125Nm |
20-90Lb.ft |
427mm |
38mm |
0.94kg |
|
JMH920 |
9x12 |
4.0-20Nm |
30-180Lb.in |
284mm |
38mm |
0.58lkg |
|
JMH930 |
9x12 |
6.0-30Nm |
50-250Lb.in |
303mm |
38mm |
0.72kg |
|
JMH930T1 |
9x12 |
4.5-30N.m |
40-250Lb.in |
303mm |
38mm |
0.72kg |
|
JMH960 |
9x12 |
10-60Nm |
9-45Lb.ft |
372mm |
38mm |
0.86kg |
|
JMR1612 |
Φ16 |
2.5-12Nm |
20-105Lb.in |
288mm |
38mm |
0.58kg |
|
JMR16125 |
Φ16 |
25-125Nm |
20-90Lb.ft |
431mm |
38mm |
0.94kg |
|
JMR1620 |
Φ16 |
4.0-20Nm |
30-180Lb.in |
288mm |
38mm |
0.58kg |
|
JMR16200 |
Φ16 |
40-200Nm |
30-150Lb.ft |
455mm |
38mm |
1.06kg |
|
JMR1630 |
Φ16 |
6.0-30Nm |
50-250Lb.in |
307mm |
38mm |
0.72kg |
|
JMR1630T1 |
Φ16 |
4.5-30N.m |
40-250Lb.in |
307mm |
38mm |
0.72kg |
|
JMR16335 |
Φ16 |
65-335Nm |
50-250Lb.ft |
515mm |
38mm |
1.20kg |
|
JMR16335L |
Φ16 |
65-335Nm |
50-250Lb.ft |
695mm |
38mm |
2.00kg |
|
JMR1660 |
Φ16 |
10-60Nm |
9-45Lb.ft |
377mm |
38mm |
0.86kg |
|
JMR221000 |
Φ22 |
200-1000Nm |
150-750Lb.ft |
1005mm |
38mm |
5.20kg |
|
JMR22500 |
Φ22 |
100-500Nm |
80-400Lb.ft |
800mm |
38mm |
4.30kg |
|
JMR22800 |
Φ22 |
160-800Nm |
120-600Lb.ft |
1005mm |
38mm |
5.20kg |
