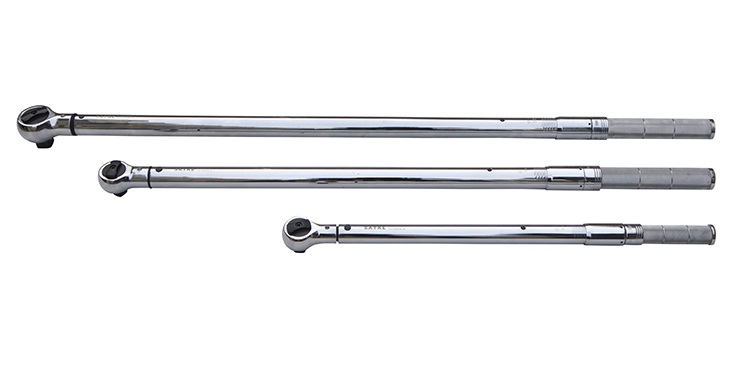

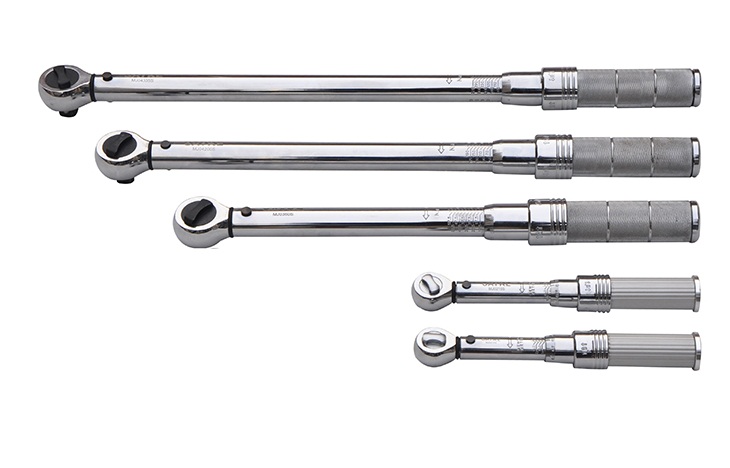

优霸机械可调式扭力扳手--金属手柄
特 点：
扭矩扳手为全金属结构，更坚固耐用
棘轮头可顺时针逆时针切换，棘轮为45齿
精度:读值的±3%(500Nm以上的精度为读值的±4%)优于扭矩扳手的国际标准
每把扭矩扳手有唯一的识别码便于追溯
合金钢上的永久性扭矩刻度，使用者方便读取，公英制对照
手柄尾端有锁紧装置，拉下调整扭矩，推上锁定扭矩值
手把上有防滑凹
|
产品编号 |
方寸大小 |
扭 矩 范 围 |
长 度 |
头部宽度 |
重 量 |
|
J1200 |
1/4" |
40-200Lb.in |
4.0-22Nm |
280mm |
38mm |
0.68kg |
|
J1200F |
1/4" |
40-200Lb.in |
4.0-22Nm |
310mm |
35mm |
0.68kg |
|
J2100 |
3/8" |
20-100Lb.ft |
25-135Nm |
425mm |
38mm |
1.04kg |
|
J2100F |
3/8" |
20-100Lb.ft |
25-135Nm |
450mm |
38mm |
1.04kg |
|
J2250 |
3/8" |
50-250Lb.in |
6.0-30Nm |
315mm |
38mm |
0.82kg |
|
J2250T1 |
3/8" |
40-250Lb.in |
4.5-30N.m |
315mm |
38mm |
0.82kg |
|
J275F |
3/8" |
15-75Lb.ft |
20-100Nm |
450mm |
38mm |
1.04kg |
|
J3100 |
1/2" |
20-100Lb.ft |
25-135Nm |
425mm |
38mm |
1.04kg |
|
J3100F |
1/2" |
20-100Lb.ft |
25-135Nm |
450mm |
38mm |
1.04kg |
|
J3150 |
1/2" |
30-150Lb.ft |
40-200Nm |
505mm |
40mm |
1.16kg |
|
J3250 |
1/2" |
50-250Lb.ft |
70-340Nm |
525mm |
40mm |
1.30kg |
|
J3250F |
1/2" |
50-250Lb.ft |
70-340Nm |
560mm |
40mm |
1.30kg |
|
J3250L |
1/2" |
50-250Lb.ft |
70-340Nm |
705mm |
40mm |
2.10kg |
|
J375F |
1/2" |
15-75Lb.ft |
20-100Nm |
450mm |
38mm |
1.04kg |
|
J4250 |
3/4" |
50-250Lb.ft |
70-340Nm |
525mm |
40mm |
1.34kg |
|
J4250F |
3/4" |
50-250Lb.ft |
70-340Nm |
560mm |
40mm |
1.34kg |
|
J4250L |
3/4" |
50-250Lb.ft |
70-340Nm |
705mm |
40mm |
2.15kg |
|
J4400 |
3/4" |
80-400Lb.ft |
100-550Nm |
855mm |
60mm |
5.00kg |
|
J4600 |
3/4" |
100-600Lb.ft |
150-800Nm |
1055mm |
60mm |
5.90kg |
|
J51000 |
1" |
200-1000Lb.ft |
250-1350Nm |
1260mm |
72mm |
9.20kg |
|
J52000 |
1" |
400-2000Lb.ft |
500-2700Nm |
1260mm |
72mm |
10.5kg |
|
J5600 |
1" |
100-600Lb.ft |
150-800Nm |
1055mm |
60mm |
5.90kg |
|
JM112 |
1/4" |
2.5-12Nm |
20-105Lb.in |
290mm |
38mm |
0.68kg |
|
JM120 |
1/4" |
4.0-20Nm |
30-180Lb.in |
290mm |
38mm |
0.68kg |
|
JM2100 |
3/8" |
20-100N.m |
15-75Lb.ft |
443mm |
38mm |
1.04kg |
|
JM2125 |
3/8" |
25-125Nm |
20-90Lb.ft |
443mm |
38mm |
1.04kg |
|
JM230 |
3/8" |
6.0-30Nm |
50-250Lb.in |
318mm |
38mm |
0.82kg |
|
JM230T1 |
3/8" |
4.5-30N.m |
40-250Lb.in |
318mm |
38mm |
0.82kg |
|
JM260 |
3/8" |
10-60Nm |
9-45Lb.ft |
388mm |
38mm |
0.96kg |
|
JM3100 |
1/2" |
20-100N.m |
15-75Lb.ft |
443mm |
38mm |
1.04kg |
|
JM3125 |
1/2" |
25-125Nm |
20-90Lb.ft |
443mm |
38mm |
1.04kg |
|
JM3200 |
1/2" |
40-200Nm |
30-150Lb.ft |
468mm |
40mm |
1.16kg |
|
JM330 |
1/2" |
6-30N.m |
50-250Lb.ft |
318mm |
38mm |
0.82kg |
|
JM3335 |
1/2" |
65-335Nm |
50-250Lb.ft |
528mm |
40mm |
1.30kg |
|
JM3335L |
1/2" |
65-335Nm |
50-250Lb.ft |
700mm |
40mm |
2.10kg |
|
JM360 |
1/2" |
10-60Nm |
9-45Lb.ft |
388mm |
38mm |
0.96kg |
|
JM41000 |
3/4" |
200-1000Nm |
150-750Lb.ft |
1055mm |
60mm |
5.90kg |
|
JM4335 |
3/4" |
65-335Nm |
50-250Lb.ft |
528mm |
40mm |
1.34kg |
|
JM4335L |
3/4" |
65-335Nm |
50-250Lb.ft |
700mm |
40mm |
2.15kg |
|
JM4400 |
3/4" |
80-400N.m |
60-300Lb.ft |
700mm |
57mm |
3kg |
|
JM4500 |
3/4" |
100-500Nm |
80-400Lb.ft |
855mm |
60mm |
5.00kg |
|
JM4500S |
3/4" |
100-500N.m |
80-400Lb.ft |
700mm |
57mm |
3kg |
|
JM4800 |
3/4" |
160-800Nm |
120-600Lb.ft |
1055mm |
60mm |
5.90kg |
|
JM51000 |
1" |
200-1000Nm |
150-750Lb.ft |
1055mm |
60mm |
5.90kg |
|
JM51500 |
1" |
300-1500Nm |
200-1100Lb.ft |
1260mm |
72mm |
9.20kg |
|
JM51500E |
1" |
300-1500Nm |
200-1100Lb.ft |
2200mm |
72mm |
11.5kg |
|
JM52000 |
1" |
400-2000Nm |
300-1500Lb.ft |
1260mm |
72mm |
9.20kg |
|
JM52000E |
1" |
400-2000Nm |
300-1500Lb.ft |
2200mm |
72mm |
11.5kg |
|
JM52000L |
1" |
400-2000Nm |
300-1500Lb.ft |
1600mm |
72mm |
10500kg |
|
JM53000 |
1" |
600-3000Nm |
400-2000Lb.ft |
1260mm |
72mm |
10.5kg |
|
JM53000E |
1" |
600-3000Nm |
400-2000Lb.ft |
2780mm |
72mm |
15.5kg |
|
JM53000L |
1" |
600-3000Nm |
400-2000Lb.ft |
1800mm |
72mm |
11800kg |
|
JM5800 |
1" |
160-800Nm |
120-600Lb.ft |
1055mm |
60mm |
5.90kg |
