产品详情-

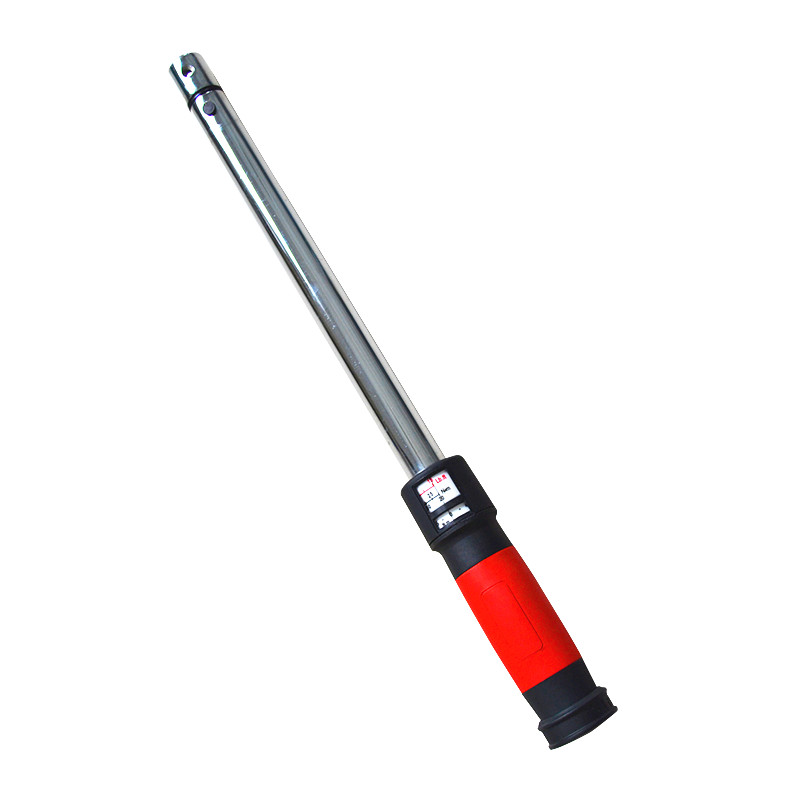

优霸可换头扭矩扳手--塑料手柄系列
产品特点：

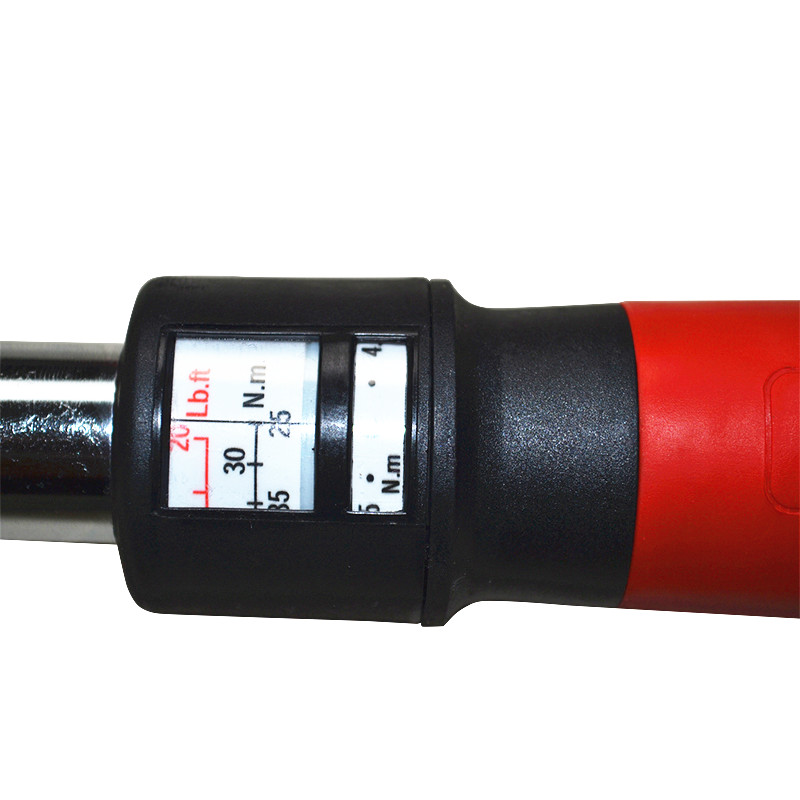

双刻度、塑把、方孔扭矩扳手精度高、结构坚固、操作方便
头部形式有：
凹方孔：9X12mm；14X18mm；24X32mm；27X36mm
圆柱头：Φ16mm；Φ22mm
精度:±3%(500Nm以上的精度为读值的±4%)优于扭矩扳手的国际标准
手柄尾端有锁紧装置，拉下调整扭矩，推上锁定扭矩值
手柄人性化设置，舒适防滑
头部可配各种相应插件。
|
产品编号 |
头部尺寸 |
扭矩范围（公英制刻度） |
长度 |
头部宽度 |
重量 |
|
|
SH14150 |
14x18 |
30-150Lb.ft. |
41-203Nm. |
455mm |
38mm |
0.92kg |
|
SH14250 |
14x18 |
50-250Lb.ft. |
68-338Nm. |
515mm |
38mm |
1.06kg |
|
SH14250L |
14x18 |
50-250Lb.ft. |
68-338Nm. |
695mm |
38mm |
1.85kg |
|
SH24400 |
24x32 |
80-400Lb.ft. |
108-540Nm. |
840mm |
56mm |
4.04kg |
|
SH24600 |
24x32 |
100-600Lb.ft. |
135-810Nm. |
1040mm |
56mm |
4.93kg |
|
SH9100 |
9x12 |
20-100Lb.ft. |
27-135Nm. |
405mm |
38mm |
0.8kg |
|
SH9200 |
9x12 |
40-200Lb.ft. |
54-270Nm. |
250mm |
38mm |
0.44kg |
|
SH9250 |
9x12 |
50-250Lb.ft. |
68-338Nm. |
295mm |
38mm |
0.58kg |
|
SLH14200 |
14x18 |
40-200N.m |
30-150Lb.ft. |
455mm |
38mm |
0.92kg |
|
SLH14335 |
14x18 |
65-335N.m |
50-150Lb.ft. |
515mm |
38mm |
1.06kg |
|
SLH14335L |
14x18 |
65-335N.m |
50-150Lb.ft. |
695mm |
38mm |
1.85kg |
|
SLH14400 |
14x18 |
80-400N.m |
60-300Lb.ft. |
695mm |
38mm |
1.85kg |
|
SLH241000 |
24x32 |
200-1000N.m |
150-750Lb.ft. |
1040mm |
56mm |
4.93kg |
|
SLH24500 |
24x32 |
100-500N.m |
80-400Lb.ft. |
840mm |
56mm |
4.04kg |
|
SLH24800 |
24x32 |
160-800N.m |
120-600Lb.ft. |
1040mm |
56mm |
4.93kg |
|
SLH271500 |
27x36 |
300-1500N.m |
200-1100Lb.ft. |
1250mm |
64mm |
8.00kg |
|
SLH272000 |
27x36 |
400-2000N.m |
300-1500Lb.ft. |
1250mm |
64mm |
8.00kg |
|
SLH273000 |
27x36 |
600-3000N.m |
400-2200Lb.ft. |
1250mm |
64mm |
9.30kg |
|
SLH9100 |
9x12 |
20-100N.m |
15-75Lb.ft. |
422mm |
38mm |
0.8kg |
|
SLH912 |
9x12 |
2.5-12N.m |
20-105Lb.in. |
279mm |
38mm |
0.44kg |
|
SLH9125 |
9x12 |
25-125N.m |
20-90Lb.ft. |
422mm |
38mm |
0.80kg |
|
SLH920 |
9x12 |
4.0-20N.m |
30-180Lb.in. |
279mm |
38mm |
0.44kg |
|
SLH930 |
9x12 |
6.0-30N.m |
50-250Lb.in. |
298mm |
38mm |
0.58kg |
|
SLH930T1 |
9x12 |
4.5-30N.m |
40-250Lb.in. |
298mm |
38mm |
0.58kg |
|
SLH960 |
9x12 |
10-60N.m |
9-45Lb.ft. |
367mm |
38mm |
0.72kg |
|
SLR1612 |
Φ16 |
2.5-12N.m |
20-105Lb.in. |
283mm |
38mm |
0.44kg |
|
SLR16125 |
Φ16 |
25-125N.m |
20-90Lb.ft. |
426mm |
38mm |
0.80kg |
|
SLR1620 |
Φ16 |
4.0-20N.m |
30-180Lb.in. |
283mm |
38mm |
0.44kg |
|
SLR16200 |
Φ16 |
40-200N.m |
30-150Lb.ft. |
450mm |
38mm |
0.92kg |
|
SLR1630 |
Φ16 |
6.0-30N.m |
50-250Lb.in. |
302mm |
38mm |
0.58kg |
|
SLR1630T1 |
Φ16 |
4.5-30N.m |
40-250Lb.in. |
302mm |
38mm |
0.58kg |
|
SLR16335 |
Φ16 |
65-335N.m |
50-250Lb.ft. |
510mm |
38mm |
1.06kg |
|
SLR16335L |
Φ16 |
65-335N.m |
50-250Lb.ft. |
690mm |
38mm |
1.85kg |
|
SLR1660 |
Φ16 |
10-60N.m |
9-45Lb.ft. |
377mm |
38mm |
0.72kg |
|
SLR221000 |
Φ22 |
200-1000N.m |
150-750Lb.ft. |
990mm |
38mm |
4.20kg |
|
SLR22500 |
Φ22 |
100-500N.m |
80-400Lb.ft. |
790mm |
38mm |
3.30kg |
|
SLR22800 |
Φ22 |
160-800N.m |
120-600Lb.ft. |
990mm |
38mm |
4.20kg |
