产品详情产品介绍：

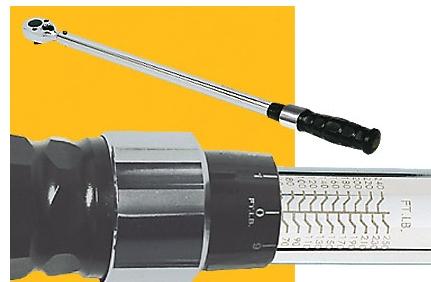

双刻度，带舒适手柄。
技术参数 ：
| 产品编号 | 扭矩范围 | 方头尺寸 | 刻度 | 扭矩范围 | 刻度 |
A in. [mm] |
B in. [mm] |
C in. [mm] |
D in. [mm] |
重量 Lbs. [Kg] |
| 英寸磅 | ||||||||||
| 1501MRPH | 20-150 in. Ib. | 1/4" | 1 | 2.8-15.3 | 0.12 | 10.00 (254.00) | 1.06 (26.92) | .93 (23.62) | 1.06 (26.92) | 0.70 (.31) |
| 2502MRPH | 30-250 in. lb. | 3/8" | 1 | 4.0-27.7 | 0.12 | 11.25 (285.75) | 1.06 (26.92) | 1.06 (26.92) | 1.06 (26.92) | 0.70 (.31) |
| 10002MRPH | 150-1000 in. lb. | 3/8" | 5 | 19.8-110.2 | 0.6 | 16.00 (406.40) | 1.43 (36.32) | 1.20 (30.48) | 1.40 (35.56) | 2.50 (1.13) |
| 英尺磅 | ||||||||||
| 1002MFRPH | 10-100 ft. lb. | 3/8" | 1 | 16.9 -132.2 | 0.7 | 16.00 (406.40) | 1.43 (36.32) | 1.20 (30.48) | 1.40 (35.56) | 2.50 (1.13) |
| 1503MFRPH | 20-150 ft. lb. | 1/2" | 1 | 34 -197 | 1.4 | 19.00 (482.60) | 1.70 (43.18) | 1.40 (35.56) | 1.40 (35.56) | 3.25 (1.47) |
| 2503MFRPH | 30-250 ft. lb. | 1/2" | 1 | 47 - 332 | 1.4 | 24.40 (619.76) | 1.70 (43.18) | 1.40 (35.56) | 1.40 (35.56) | 3.40 (1.54) |
| 6004MFRPH | 100-600 ft. lb. | 3/4" | 5 | 169 -779 | 6.8 | 42.00 (1083.31) | 2.50 (63.50) | 2.10 (53.34) | 1.40 (35.56) | 11.85 (5.37) |
| 10005MFRPH | 200-1000 ft. lb. | 1" | 5 | 305 -1322 | 6.8 | 70.00 (1778.00) | 3.00 (76.20) | 3.00 (76.20) | 1.50 (38.10) | 25.10 (11.38) |
