可调式扭力螺丝刀起子--775系列
品牌：达威力Stahlwill
型号：775系列
交货期：天
评分：★★
支付：
询价

产品详情

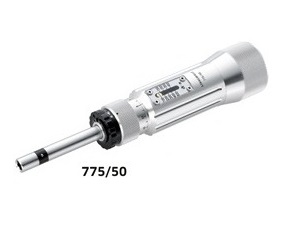

775 - Torque screwdriver TORSIOMAX

Torque screwdriver TORSIOMAX 775

click-type

for torque-controlled bolt tightening in the cN·m and in·lb ranges

for one-off or production runs

measuring element is a screw compression spring

anticlockwise and clockwise tightening

with 1/4" internal hex drive (F 6.3 DIN 3126/ISO1173)

infinitely variable via micrometer scale (twist scale)

disengaging clutch coupling prevents the preset value being exceeded

the shape of the handle and its surface texture ensure safe and accurate transmission of torque

insert tools: For all 1/4" hex E 6.3, Phillips-head screws, POZIDRIV / SUPADRIV®, straight-slot, TORX®, hex BITS (see pp. 167, 168). For very small joints, BITS with a 4 mm hex drive and an adapter No 3115/2 for BITS screwdriver inserts, Type C4, and external hex 1/4" (E 6.3 DIN 3126/ISO 1173) are required .

with certificate

display deviation value ± 6%

code	size			inside	L mm	g
51060003	31)	2-30 cN·m	0,2 cN·m	F 6,3	105	99
51060012	122)	20-120 cN·m	1 cN·m	F 6,3	157	192
51060030	302)	40-300 cN·m	1 cN·m	F 6,3	160	214
51060050	502)	100-500 cN·m	2,5 cN·m	F 6,3	205	436
51060100	1003)	400-1000 cN·m	5 cN·m	F 6,3	235	762
51460003	a/31)	0,2-3 in·lb	0,02 in·lb	F 6,3	105	99
51460012	a/122)	2-12 in·lb	0,1 in·lb	F 6,3	157	192
51460050	a/502)	10-50 in·lb	0,25 in·lb	F 6,3	205	436

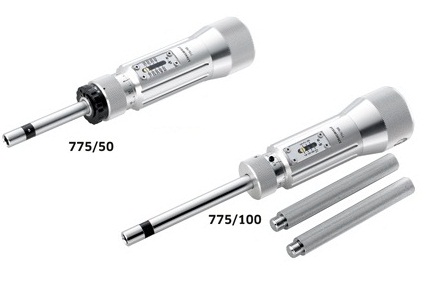

1) with a swivelling handle-end to improve tool control; and with a clamping screw for locking the preset. 2) with an additional locking mechanism to prevent the selected torque being inadvertently adjusted.  3) with screw-on handles for increasing the force applied for large torques.
