电子数显式扭力扳手--714系列
品牌：达威力Stahlwill
型号：714
交货期：45天
评分：★★★★
支付：款到发货
询价

产品详情

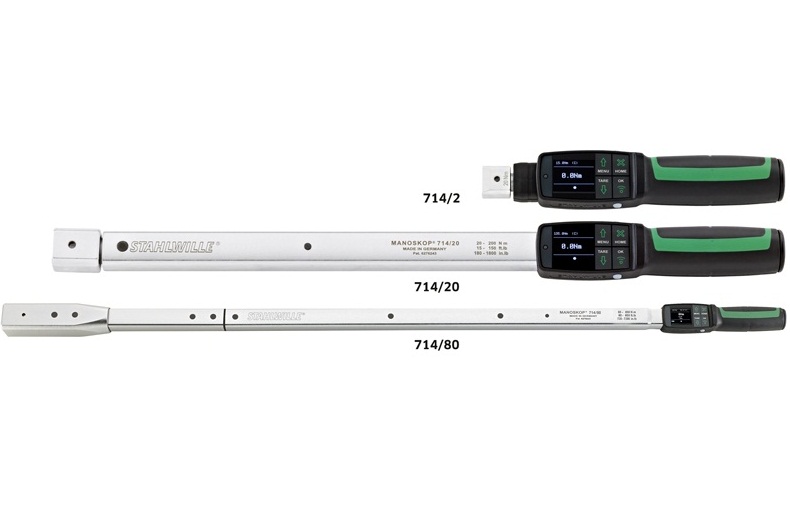

 714 - Basic wrenches with tool carrier for insert tools

MANOSKOP® 714 - indicating and click-type
Electromechanical torque and angle-controlled wrench

4 measuring modes (torque, angle, torque backed up by angle, angle backed up by torque)

high-definition colour display with additional side-mounted indicator lamps

freely configurable menu structure

optionally: Li-ion battery No 7195-2 and charger No 7160

3 function modes: cut-out, peak (indicating mode with peak value) and track (indicating mode with current value)

Micro USB interface

bayonet connection for battery compartment

QuickRelease safety lock change system for insert tools

angle-controlled measurement without a reference arm

Data storage (≤2500 tightening jobs)

as many as 200 joints can be programmed in up to 25 preset sequences.

different tolerance limits can be set for each joint

acoustic and visual assessment of the joint

rapid, accurate setting via keypad

the automatic keypad lock prevents inadvertent changes

overload protection by means of acoustic and visual signals and a fail-safe system (clockwise)

automatic notification of the next calibration date, either by the number of joints or the time interval

fully automated calibrating and adjusting using the perfectControl calibrating and adjusting unit No 7794-2 (torque) or 7794-3 (torque and angle)

units of measure: N·m, ft·lb, in·lb.

tightening torque is automatically corrected if a deviating extension is entered

immediately reusable after release

clockwise and anticlockwise tightening - it may be necessary to refit the insert tool rotated through 180° for anticlockwise tightening in the cut-out mode

tactile and acoustic trigger signal.

torque and angle are simultaneously visible

all readings are independent of the point of application of force (with sizes 1, 2 and 4)

safe handling due to ergonomically designed handle (resistant to oils, grease, fuels, brake fluid and Skydrol)

2 certificates (torque, angle)

in sturdy plastic case (size 40-100 in steel case)

design patent, patent

supplied with Sensomaster Basic software, USB cable, 4 AAA/LR03 micro-batteries, 1.5 V. AAA, 1.2 V, micro NiMH rechargeable batteries can be used

display resolution, angle 0.1°

display deviation value, angle ±1%, ±1 digit

display resolution, torque ≤ 60 N·m: 0.01 N·m; > 60 N·m: 0.1 N·m

display deviation value, torque ±2%, ±1 digit

code	size				mm	b mm	h mm	L mm	LF mm	SF mm	g	with box
96500901	1	1-10 N m	0,7 -7,5 ft.lb	9-90 in.lb		28	23	226	188	17,5	370	795
96500902	2	2-20 N m	1,5-15 ft.lb	18-180 in.lb		28	23	226	188	17,5	380	805
96500904	4	4-40 N m	3-30 ft.lb	36-360 in.lb		28	23	252	214	17,5	420	845
96500906	6	6-60 N m	4,5-45 ft.lb	54-540 in.lb		28	23	393	355	17,5	810	1235
96500910	10	10-100 N m	7,4-75 ft.lb	90-900 in.lb		28	23	466	428	17,5	1085	1655
96500920	20	20-200 N m	15-150 ft.lb	180-1800 in.lb		28	23	547	516	25	1361	1896
96500940	40	40-400 N m	30-300 ft.lb	360-3600 in.lb		28	23	687	656	25	1765	5155
96500965	65	65-650 N m	48-480 ft.lb	580-5800 in.lb		30,6	25,6	890	890	55	3222	6017
96500980	80	80-800 N m	60-600 ft.lb	720-7200 in.lb		30,6	25,6	1158	1158	55	4572	8662
96500100	100	100-1000 N m	74-750 ft.lb	900-9000 in.lb		30,6	25,6	1343	1343	55	4990	9080
