电子数显角度式扭力扳手--713R系列
品牌：达威力Stahlwill
型号：713R
交货期：45天
评分：★★★★★
支付：款到发货
询价

产品详情

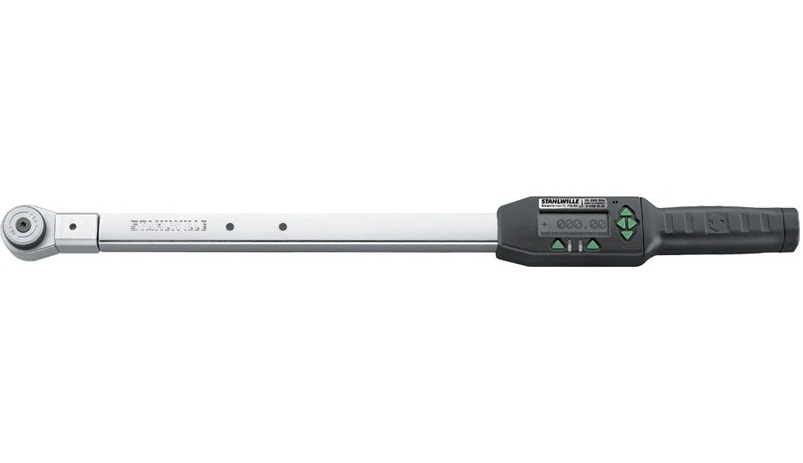

 713R - Electronic angle-controlled torque wrenches Sensotork®

Indicating torque wrenches
Electronic angle-controlled torque wrench Sensotork® 713

simple, flexible operation thanks to operator guidance on large-format display

very broad measuring range (5% to 100% of rated value)

supplied with insert tool reversible ratchet, more insert tools

QuickRelease safety lock

for clockwise and anticlockwise torquing

measurements independent of the point of application of force (sizes 6 and 20)

units of measurement: N·m, ft·lb, in·lb

advance warning points programmable for visual, tactile and acoustic signals

torque and angle are simultaneously visible

convenient angle measurement across a very wide angle range without a reference arm

insert tool lengths can be individually set

maintenance friendly due to easy adjustment and automatic reminder of next calibration date

repeated joints can be collated to form a single menu-guided sequence

individual identification markings possible

password protection to prevent inadvertent changes and make the tool tamper-proof

meets requirements of DKD-R 3-7, Class 2

with certificate

in sturdy plastic case (size 40 in tough steel case)

supplied with three 1.5 V AA batteries. AA/LR6, 1.2 V NiMH rechargeable cells may also be used.

fully automated calibration (torque) using perfectControl calibrating unit No 7794-2. Adjustment without disassembly.

registered design

display deviation value for angle ± 1°

display deviation value ± 1%

code	size			"	mm	b mm	h mm	L mm	g	with box
96501606	6	3-60 N m	2,5-44 ft.lb	3/8		50	33,5	378	856	1500
96501620	20	10-200 N m	7-148 ft.lb	1/2		50	33,5	608	1552	2430
96501640	40	20-400 N m	15-296 ft.lb	3/4		50	33,5	838	2332	5555
