达威力可换头扭力扳手-730系列
品牌：达威力Stahlwill
型号：730
交货期：45天
评分：★★★★★
支付：款到发货
询价

产品详情

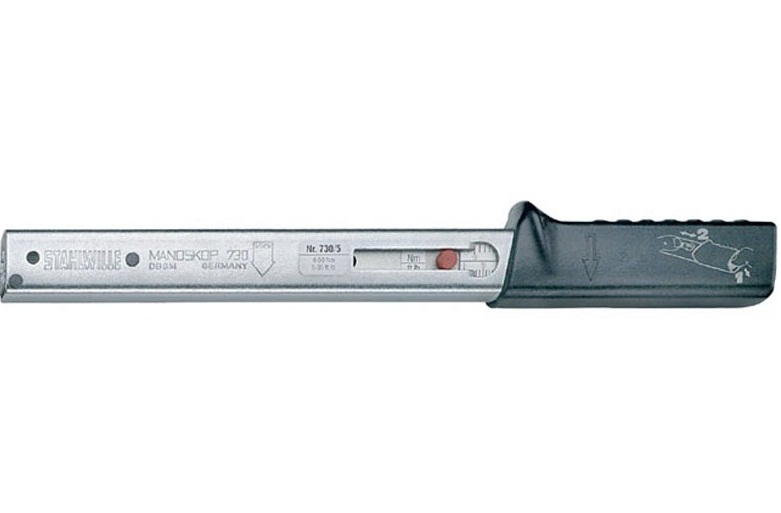

达威力Stahlwille可交换头可调式扭力扳手-730系列

Service MANOSKOP® 730

click-type

mount for interchangeable insert/shell tools

QuickRelease safety lock (sizes 5-65)

rapid setting (sizes 2-65)

dual stop signal

twin scales N·m/ft·lb and N·m/in·lb (sizes 5-80)

the measuring element is only under load while force is being applied, no need for manual reset to zero

can be applied for either clockwise or anticlockwise tightening by turning the inserts over

any force applied to the tool after the 'click' or applied in the opposite direction to the current function - e.g. forcible loosening of a jammed screw - does not act on the trigger mechanism and cannot cause damage to it.

calibration using perfectControl calibrating unit No 7794 or calibration system No 7706. Adjustment without disassembly.

with certificate

display deviation value ± 4%

 730 - Basic wrenches with tool carrier for insert tools

code	size			mm	b mm	h mm	L mm	LF mm	SF mm	g
50180002	2	4-20 N m	0,5 N m		27,5	23	178,5	174	17,5	315
50180004	4	8-40 N m	1 N m		27,5	23	222	218	17,5	395
50580001	a/2-1	17,5-87,5 in.lb	2,5 in.lb		27,5	23	178,5	174	17,5	315
50580002	a/2	30-175 in.lb	5 in.lb		27,5	23	178,5	174	17,5	315
50580004	a/4	70-350 in.lb	10 in.lb		27,5	23	222	218	17,5	395

code	size					mm	b mm	h mm	L mm	LF mm	SF mm	g
50180005	5	6-50 N m	5-36 ft.lb	2 N m	1 ft.lb		28	23	315	288	17,5	805
50180010	10	20-100 N m	15-72,5 ft.lb	2,5 N m	2,5 ft.lb		28	23	370	343	17,5	965
50180012	12	25-130 N m	20-95 ft.lb	2,5 N m	2,5 ft.lb		28	23	410	390	25	1100
50180020	20	40-200 N m	30-145 ft.lb	5 N m	5 ft.lb		28	23	455	435	25	1250
50180040	40	80-400 N m	60-300 ft.lb	10 N m	10 ft.lb		28	23	590	570	25	1880
50180065	65*	130-650 N m	100-480 ft.lb	20 N m	20 ft.lb		30,6	25,6	875	855	25	3280
50181565	II/65	130-650 N m	100-480 ft.lb	20 N m	20 ft.lb		30,6	25,6	897	907	55	3280
50580005	a/5	6-50 N m	50-440 in.lb	2 N m	10 in.lb		28	23	315	288	17,5	805
50580010	a/10	20-100 N m	180-880 in.lb	2,5 N m	20 in.lb		28	23	370	343	17,5	965
50580012	a/12	25-130 N m	225-1150 in.lb	2,5 N m	25 in.lb		28	23	410	390	25	1100
50580020	a/20	40-200 N m	350-1750 in.lb	5 N m	50 in.lb		28	23	455	435	25	1250
* recommended ratchet insert tool No 735/40HD

 730/80 - Basic wrench with tool carrier for shell tools

code

size

mm

b mm

h mm

L mm

LF mm

SF mm

g

50180080

80

160-800 N m

120-600 ft.lb

20 N m

20 ft.lb

46

43

970

990

95

5377

Use shell adaptor No 7370/80 to make 14 x 18 mm insert tools fit.
